The REV3™ throttle has several different size reels that will change how much twist is necessary for the throttle to completely open the carbs or throttle bodies on a motorcycle. The larger the reel is, the shorter the twist. Each reel size will shorten the twist by about 10 degrees. If your stock throttle has a 40 mm reel and stock twist is 90 degrees (1/4 turn), the 45mm reel will reduce the twist to 80 degrees and the 50 mm reel will reduce it to 70 degrees. The 35 mm reel will increase the throttle twist to approximately 100 degrees. This is just an example; every model of motorcycle is different.
The included cam reel has a progressive profile that allows the throttle to act like a sensitive, long twist throttle during the initial small throttle openings for precise control and then acts like a more aggressive short twist throttle at large throttle openings, progressively shortening the amount of twist needed to reach full throttle.
Throttle and Cables
Details
The NEW 3rd generation Motion Pro Revolver variable rate throttle system is here!
Innovative reel changing system lets you tailor the throttle rate to your preference and riding conditions
5 different reels provide perfect throttle response for any condition. Use smaller reels for a slower throttle rate and larger reels for a faster throttle rate. Included cam reel provides progressive throttle response preferred by some riders

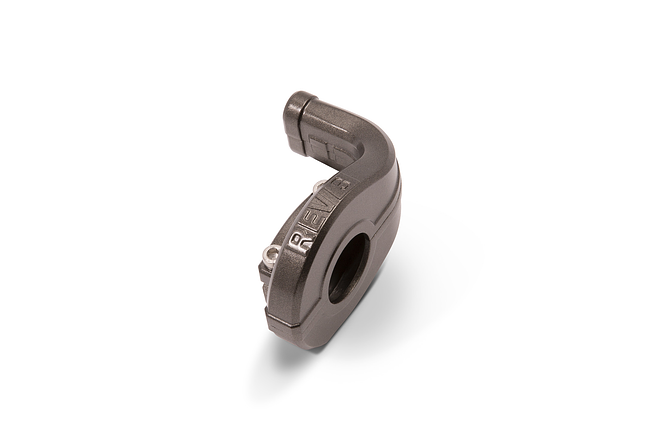

Slim REV3™ throttle housing allows more room for lever clearance and adjustment to the throttle housing position
Improved throttle stop provides greater strength and durability - Snap-together elbows make it even easier to install and change reels
Cable boot keeps dirt and dust out for reliable and smooth operation

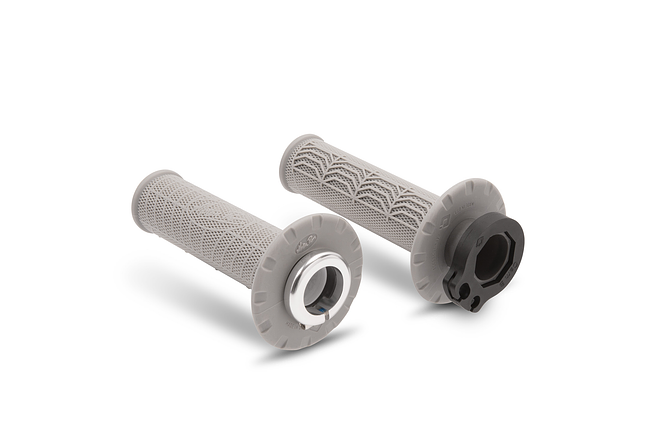

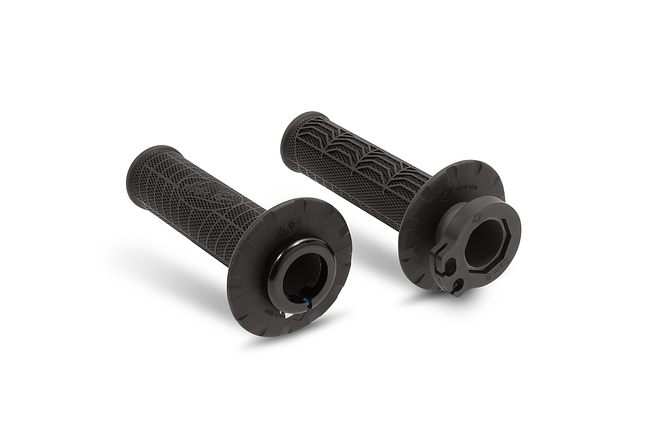

REV3™ off-road kits are compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
Billet aluminum inline cable adjusters ease installation and adjustment
Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
Upper section of cables uses 6 mm housing to provide solid support for adjusters
Simple to install and maintain
Patented
Kit includes:

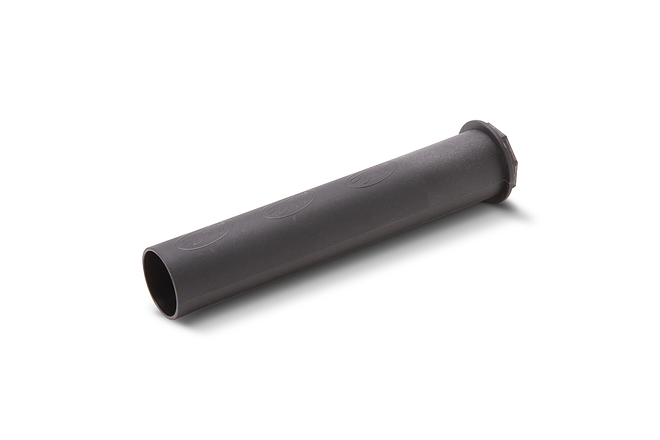

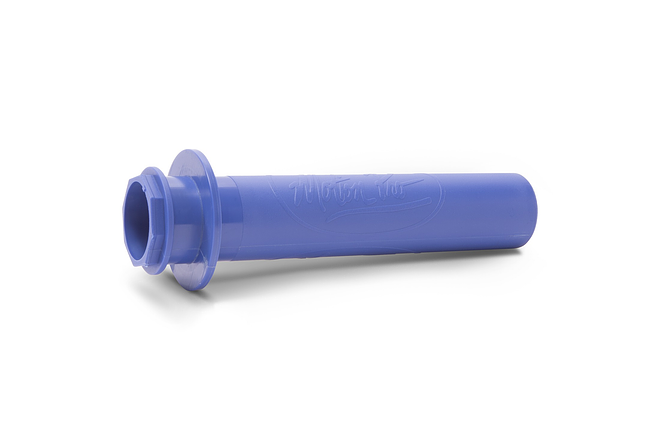

REV3™ throttle assembly with throttle tube (REV3™ off-road kits include the unbreakable Titan Throttle Tube™
Motion Pro REV3™ black vinyl cables specifically designed for your bike

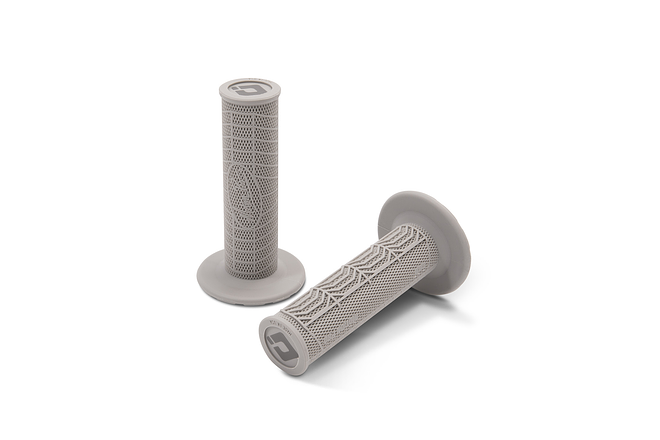

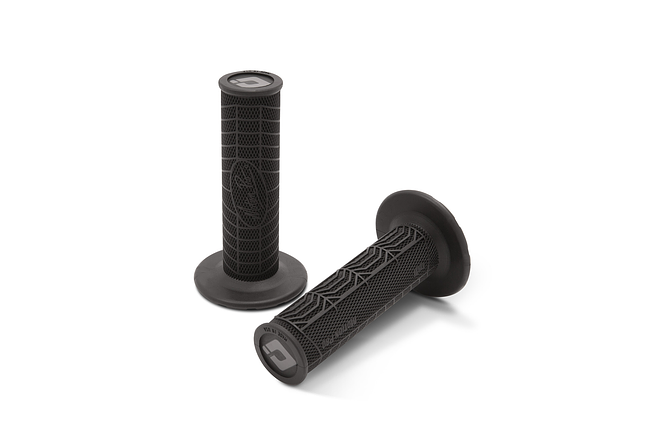

REV3™ sportbike kits include Motion Pro RoadControl™ grips (01-1131) and REV3™ off-road kits include Motion Pro DirtControl™ II grips (01-2816)

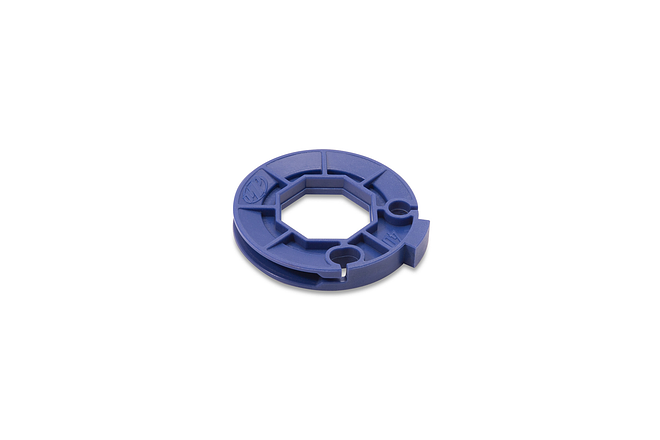

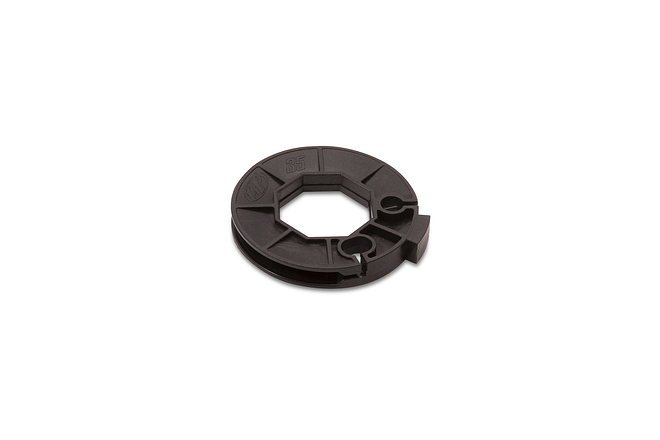

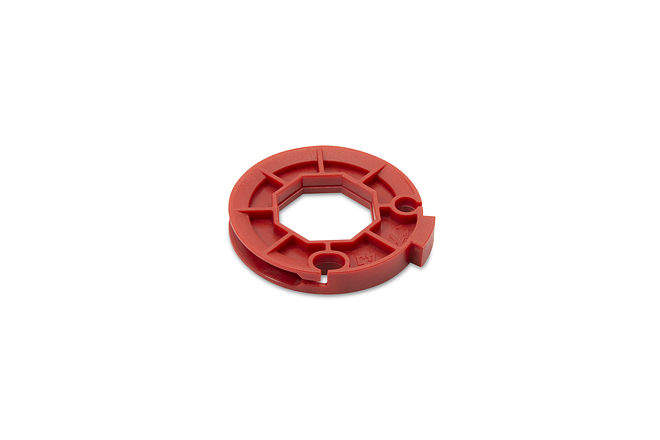

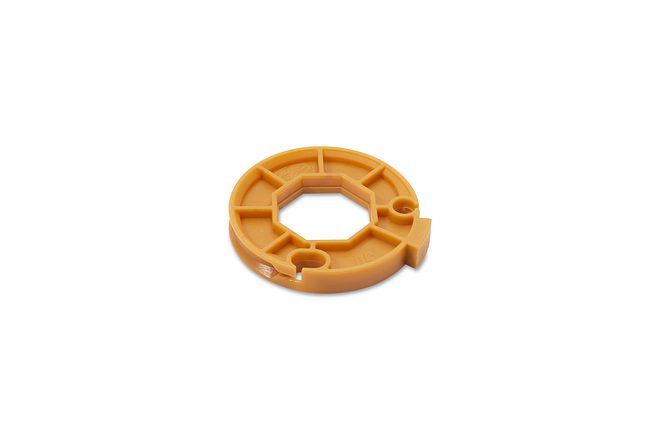

Four interchangeable round reels: 35mm, 40 mm, 45 mm, 50 mm
Progressive cam reel - Sportbike kits include road race profile cam reel (orange) and off-road kits include off-road profile cam reel (gray)
Reel Curve Samples
REV3™ reels are compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
Grips

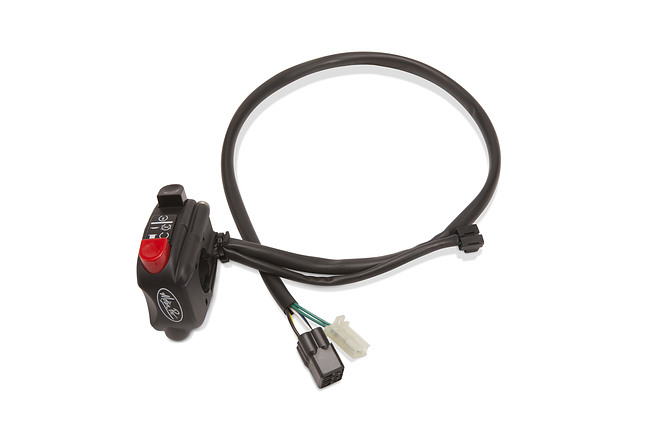

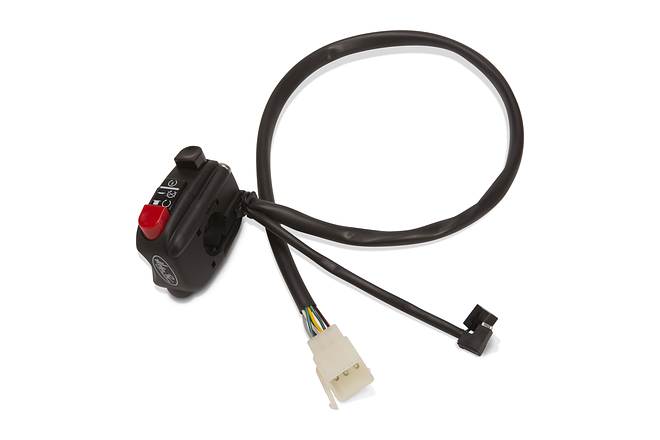

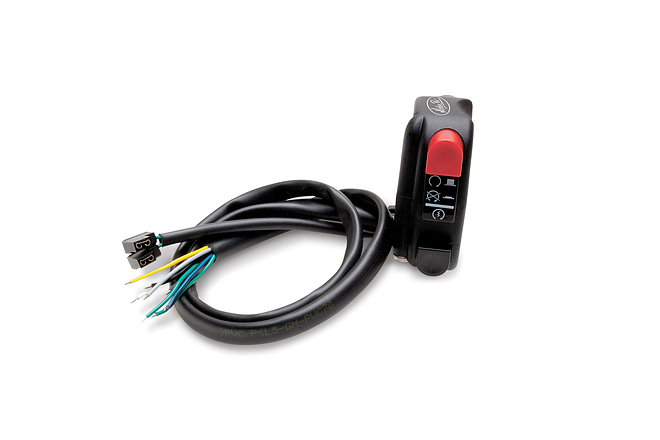

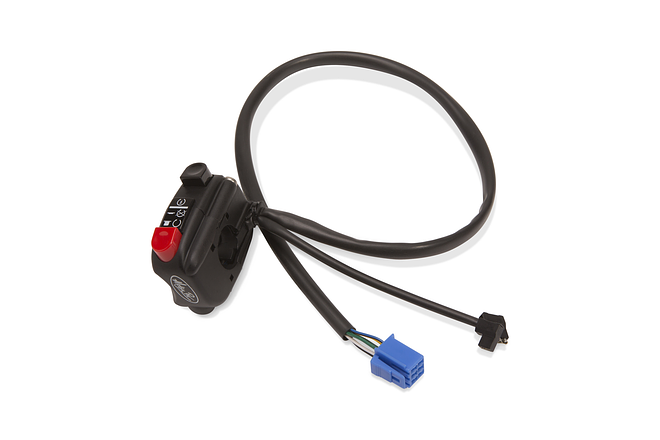

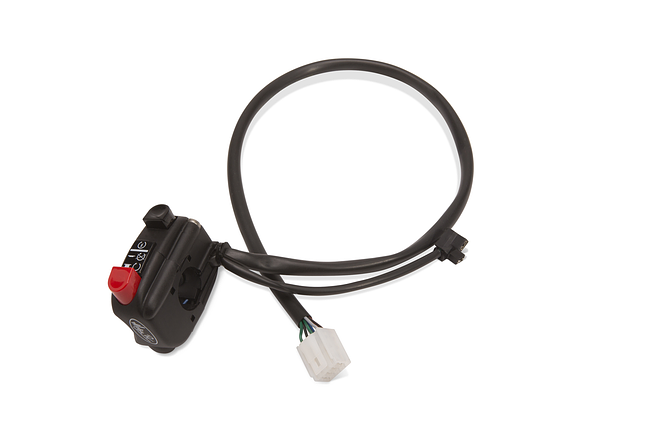

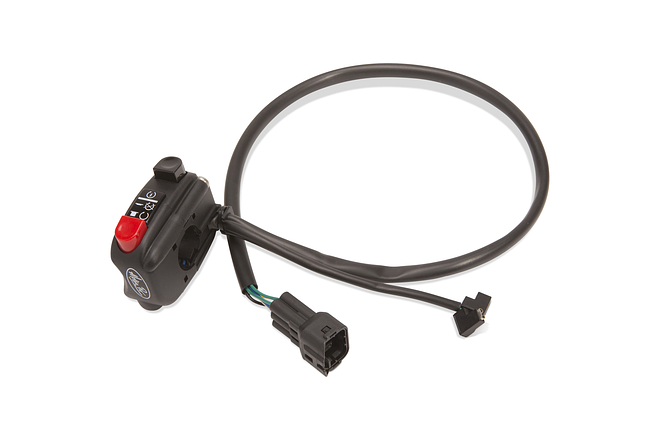

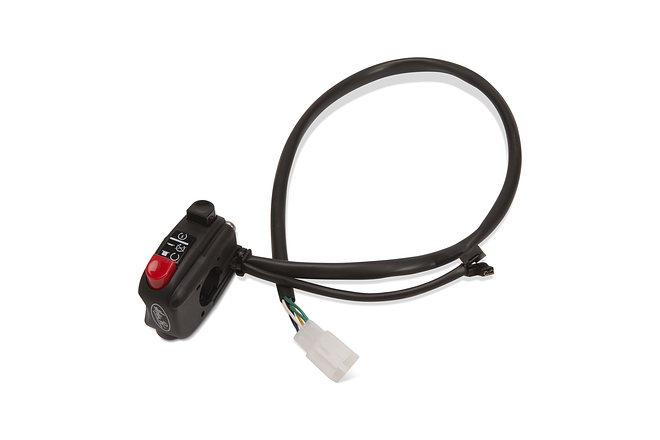

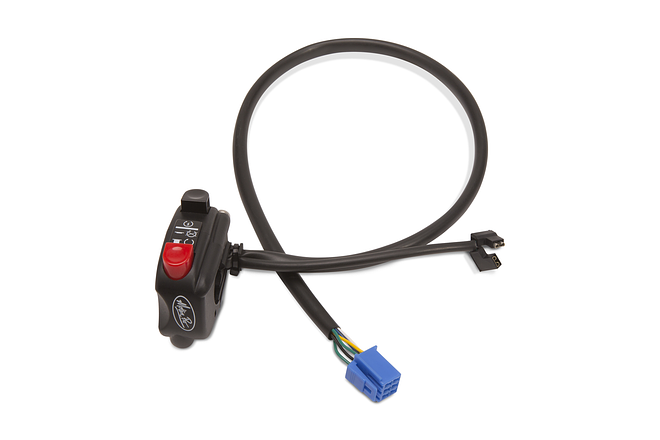

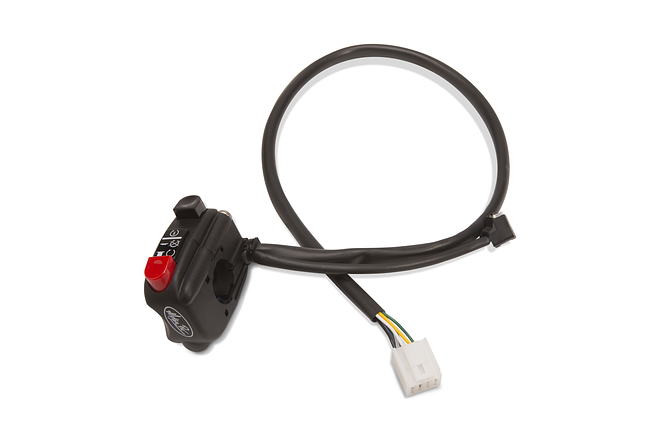

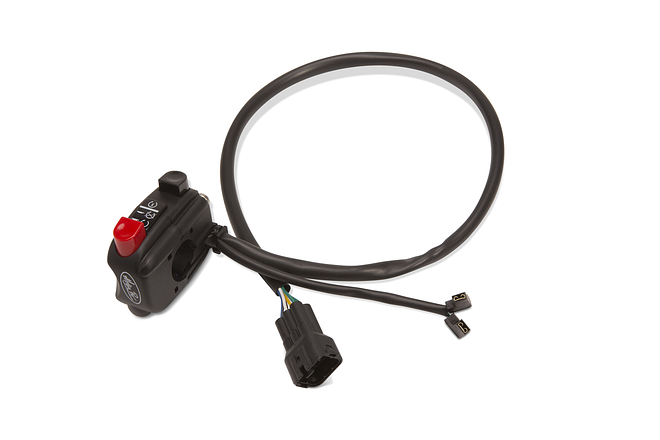

Handlebar Stop/Start Switch
Required for installation of Rev2 or Revolver Throttle Kit on bikes with ignition and starter switches in stock throttle assembly
Fits 7/8" bars (22.2 mm)
Extra narrow design is only 26 mm wide
Push In/Out engine switch
Momentary 2 pole starter switch
Starter switch has 2 separate circuits, one normally open, one normally closed for street bikes that use a headlight/starter cutoff
550 mm long wiring harness with brake light switch circuit wiring
Brake light circuit wiring pigtail 120 mm long with female spade connectors
Stainless steel screws and internal rubber pad positions switch on handlebar securely without drilling holes
Wiring harness has bare, tinned wires without connector for easy installation of OE connector body

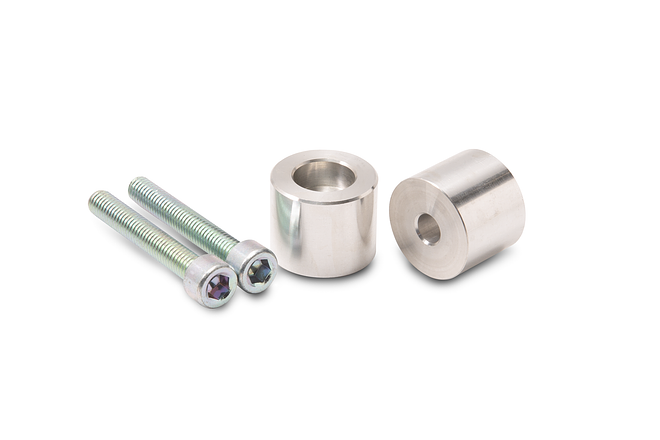

For use when installing Revolver, REV2™ and REV3™ throttle kits on 2006-2020 Yamaha YZF-R6, 2022 YZF-R6 GYTR (closed course racing model only) and 2002-2019 Yamaha YZF-R1
Adds 25mm of length to stock handlebars to accommodate the Revolver, REV2™ and REV3™ throttle with the stock bar ends
Designed for 2006-2020 Yamaha YZF-R6, 2022 YZF-R6 GYTR (closed course racing model only) and 2002-2019 Yamaha YZF-R1 only
Kit consists of two spacers and two extended length socket head hex bolts

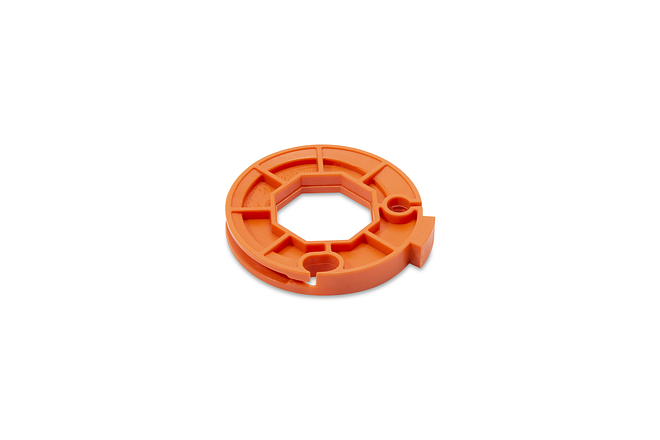

Cam Profile for the REV3™ Street/Race Throttle Kit
Bright orange color for easy identification
Progressive cam profile acts like a small diameter reel at low throttle openings, and a more aggressive large reel at openings beyond 40-50%.
Sensitive control for small throttle openings for best feel, more aggressive at large openings for faster acceleration.
Advantage for both the expert rider looking for the best feel at the limit, and the less experienced rider, who needs a softer feel at low throttle openings for smoother control
Included with every Rev3 Street Throttle Kit
Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips

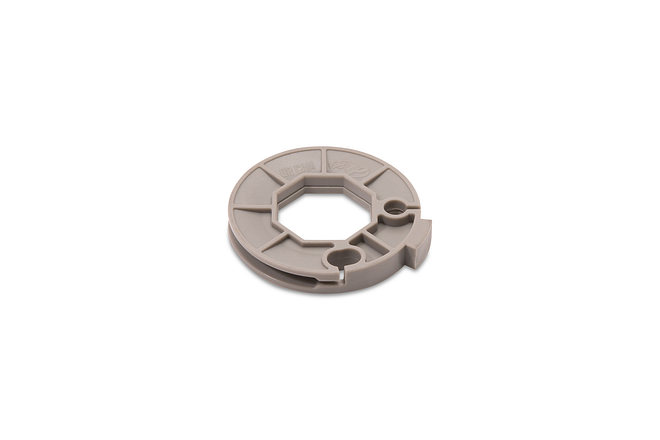

Progressive cam profile acts like a small diameter reel at low throttle openings, and a more aggressive large reel at openings beyond 40-50%.
Sensitive control for small throttle openings for best feel, more aggressive at large openings for faster acceleration.
Good for many conditions, including low traction mud or sand, where initial throttle opening is sensitive for good feel. Reduced on-throttle "hit" of powerful motocross bikes for better control, but maintains an aggressive throttle feel at larger openings.
Included with every Rev3 Off Road Throttle Kit
Compatible with the new Motion Pro DirtControl™ V2 Lock-On grips (01-2818 and 01-2819) and ODI Lock-On grips
